Used 2018 HALTER LoadAsisstant U-35 | Machine Tending Cells
Have one to sell?
ConditionUsed
$29,500.00 USD

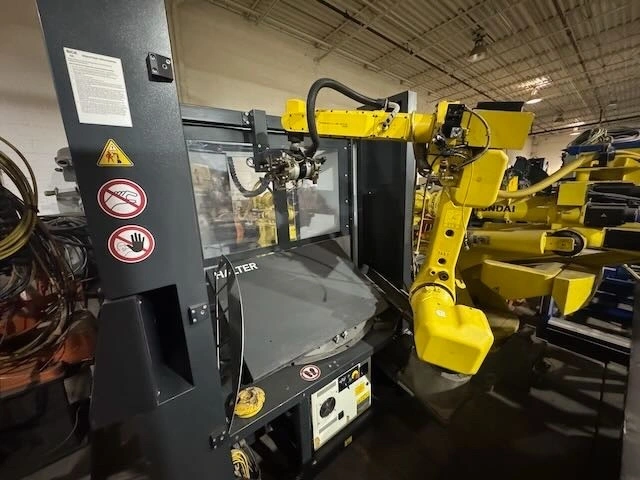

1 - Halter LoadAssistant U-35 (USA Model) with Fanuc M20iA/35M and R30iB Mate Controller, Cables, and Teach Pendant.
Robot and Controller S/N: E110550
Serial/Device Number: DCH0140
Excellent condition, BARELY used (less than 200 hours of running time on the robot), this Halter Load Assist cell is perfect for any shop owner looking to automate the feeding, loading, and unloading of metal stock for their CNC machines, be that a lathe or a mill. With a touch screen display running the Halter software, this cell can be configured to fit your machine, and includes hardware for an automatic door opening and closer as well. Robot is fully operational and integrated industrial PC boots up into the windows interface, where a user can select the Halter software on the integrated touch screen and get to setting up their new machine interface, job, and job specifics.
Check out the attached video for a quick walk around of this unit while it is running a demonstration program, and see pictures for more details.
For more information, see the blurb below from online about this machine:
The 2018 Halter Universal 35 (U-35) LoadAssist is basically a plug-and-play worker designed to feed raw metal stock into CNC lathes or milling machines and pull the finished parts out. Instead of having an operator stand in front of a machine all day swapping out parts, this setup handles the repetitive heavy lifting so the mill or lathe can keep cutting continuously.
Here is the lowdown on how it works and why machine shops use them:
The Core Hardware: Inside the cell is a standard yellow 6-axis Fanuc industrial robot arm. The "35" in the name stands for its payload capacity—it can carry up to 35 kg (around 77 lbs), which includes both the weight of the gripper mechanism and the metal part it’s moving.
The Rotary Table Setup: The unit features a rotating table setup. An operator loads raw metal blanks onto custom cut grid plates on the outside table while the robot is safely working on the inside. Once a batch is done, the table spins around to present fresh raw material to the robot without needing to pause production or stop the machine.
No "Robot Programmer" Needed: The biggest selling point of the 2018-era Halter units is the touch-screen interface (Halter SmartControl). You don't need to write line-by-line Fanuc code or use a teach pendant to set up a job. You just punch in basic dimensions on the screen (part height, width, grid layout), and the system handles the path math automatically. Changeovers usually take less than 5 to 10 minutes.
-
Offered by K. B. Industries, LLC. Find us on the web at www.kbindustriesllc.com for more information and availability or to request a quote on this unit.
-
Please note that all specifications are obtained from sources deemed reliable but are subject to change without any notice or verification to the buyer.
--
This item is offered for sale subject to prior sale and the buyer's unconditional acceptance of all of the seller's terms and conditions. The buyer is responsible for all shipping arrangements and costs, unless otherwise agreed upon. The seller does not offer terms or conditions, and all items are sold "as is, where is" unless otherwise noted.
K. B. Industries, LLC
1 - Halter LoadAssistant U-35 (USA Model) with Fanuc M20iA/35M and R30iB Mate Controller, Cables, and Teach Pendant.
Robot and Controller S/N: E110550
Serial/Device Number: DCH0140
Excellent condition, BARELY used (less than 200 hours of running time on the robot), this Halter Load Assist cell is perfect for any shop owner looking to automate the feeding, loading, and unloading of metal stock for their CNC machines, be that a lathe or a mill. With a touch screen display running the Halter software, this cell can be configured to fit your machine, and includes hardware for an automatic door opening and closer as well. Robot is fully operational and integrated industrial PC boots up into the windows interface, where a user can select the Halter software on the integrated touch screen and get to setting up their new machine interface, job, and job specifics.
Check out the attached video for a quick walk around of this unit while it is running a demonstration program, and see pictures for more details.
For more information, see the blurb below from online about this machine:
The 2018 Halter Universal 35 (U-35) LoadAssist is basically a plug-and-play worker designed to feed raw metal stock into CNC lathes or milling machines and pull the finished parts out. Instead of having an operator stand in front of a machine all day swapping out parts, this setup handles the repetitive heavy lifting so the mill or lathe can keep cutting continuously.
Here is the lowdown on how it works and why machine shops use them:
The Core Hardware: Inside the cell is a standard yellow 6-axis Fanuc industrial robot arm. The "35" in the name stands for its payload capacity—it can carry up to 35 kg (around 77 lbs), which includes both the weight of the gripper mechanism and the metal part it’s moving.
The Rotary Table Setup: The unit features a rotating table setup. An operator loads raw metal blanks onto custom cut grid plates on the outside table while the robot is safely working on the inside. Once a batch is done, the table spins around to present fresh raw material to the robot without needing to pause production or stop the machine.
No "Robot Programmer" Needed: The biggest selling point of the 2018-era Halter units is the touch-screen interface (Halter SmartControl). You don't need to write line-by-line Fanuc code or use a teach pendant to set up a job. You just punch in basic dimensions on the screen (part height, width, grid layout), and the system handles the path math automatically. Changeovers usually take less than 5 to 10 minutes.
-
Offered by K. B. Industries, LLC. Find us on the web at www.kbindustriesllc.com for more information and availability or to request a quote on this unit.
-
Please note that all specifications are obtained from sources deemed reliable but are subject to change without any notice or verification to the buyer.
--
This item is offered for sale subject to prior sale and the buyer's unconditional acceptance of all of the seller's terms and conditions. The buyer is responsible for all shipping arrangements and costs, unless otherwise agreed upon. The seller does not offer terms or conditions, and all items are sold "as is, where is" unless otherwise noted.
K. B. Industries, LLC
