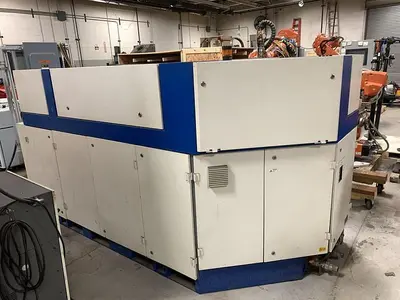

Trumpf TruDisk 8002 Laser

Description

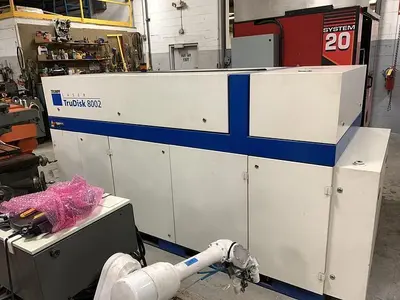

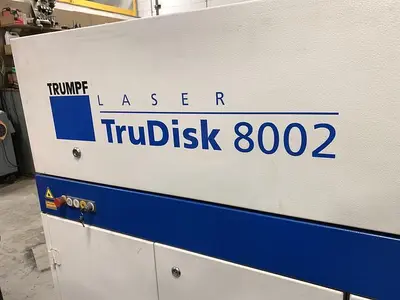

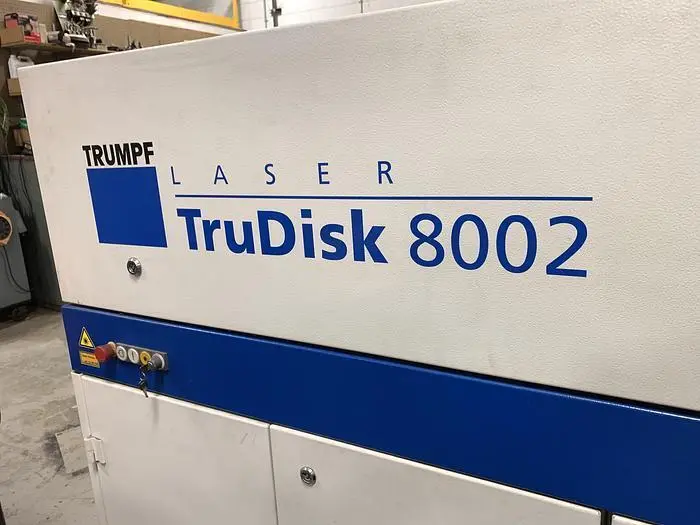

1 - Trumpf TruDisk 8002 Laser

LASER SPECIFICATIONS:

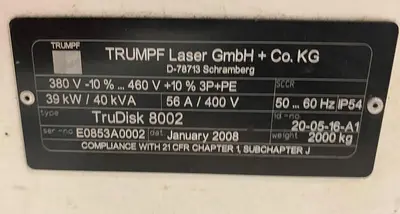

39 KW/40KVA/56AMP

The TruDisk is a high-power solid-state laser for the welding, cutting, and surface processing of metals

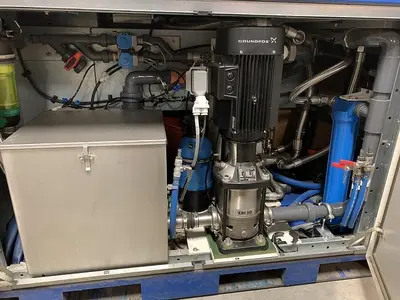

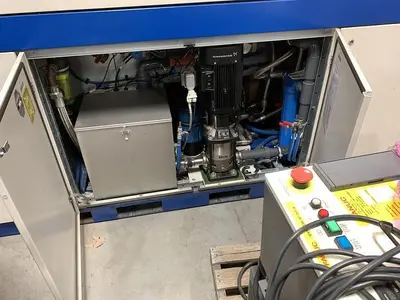

-100% consistent power output Stable processes through integrated, active laser power control ensure reproducible results.- Maximum beam quality As a laser medium, the disk in the TruDisk ensures brilliant beam quality up to 2 mm·mrad. Robust against reflectionThe patented resonator design means that your TruDisk can also process highly reflective materials. -Intelligent energy management Multiple energy-saving modes and the power factor correction reduce the power requirement.- Low-spatter weldingWith BrightLine Weld you can achieve high-quality welding seams with minimal spatter formation. -Flexible cooling conceptChoose between an integrated heat exchanger (standard) and compressor cooler (optional).

LASER PARAMETERS
LASER POWER ON THE WORKPIECE 8,000 WATTS
TYPICAL POWER CONSTANCY AT RATED POWER ± 1 % with active power regulation
CONTINUOUSLY ADJUSTABLE POWER RANGE 160 W with active power range
BEAM QUALITY AT THE INPUT COUPLING IN THE LLK 8 mm▪mrad
NUMERICAL APERTURE ON THE OUTPUT COUPLING AFTER LLK 0.1
WAVELENGTH 1030 nm
MINIMUM LASER LIGHT CABLE DIAMETER 200 μm
TYPICAL POWER CONSTANCY AT RATED POWER OVER 8 HOURS AT CONSTANT
AMBIENT TEMPERATURE ± 0.5 %
WIDTH 1175 mm
HEIGHT 1430 mm
DEPTH 725 mm
MAXIMUM NUMBER OF LASER LIGHT CABLES 2
MAXIMUM NUMBER OF LASER LIGHT CABLES FOR EXTENDED DEVICE SIZE 4
PROTECTION CLASS IP54
AMBIENT TEMPERATURE 10 °C - 50 °C
39 KW/40KVA/56AMP

-

Please note that all specifications are obtained from sources deemed reliable but are subject to change without any notice or verification to the buyer.

--

This item is offered for sale subject to prior sale and the buyer's unconditional acceptance of all of the seller's terms and conditions. The buyer is responsible for all shipping arrangements and costs, unless otherwise agreed upon. The seller does not offer terms or conditions, and all items are sold "as is, where is" unless otherwise noted.
